Overview
QWrinkle is a Modeler plug-in to create wrinkles interactively.
Quick Overview Video (Courtesy of Mike Green)

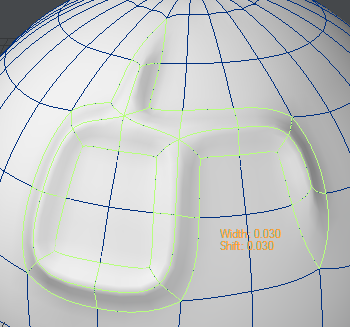

- Subpatch-friendly

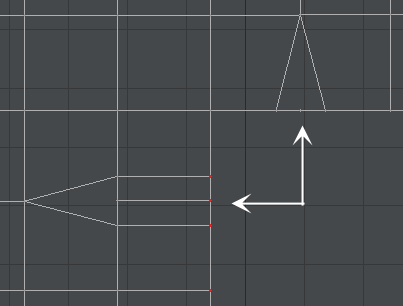

- Perfect for maintaining UVs

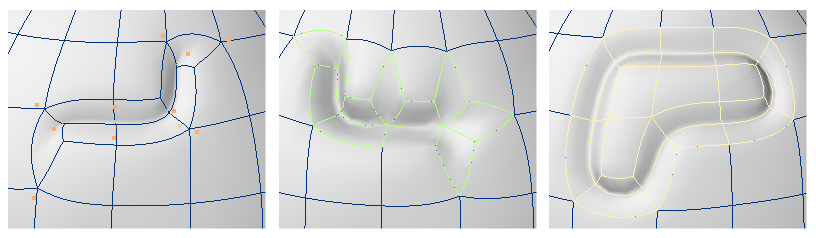

- Work in any selection mode

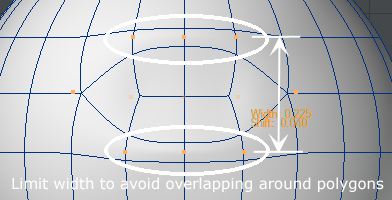

- Operation with anti-overlapping polygon
Requirements
LightWave 2018, 2019, 2020 (Windows 64bit)
LightWave 11.6, 2015.3 (Windows 64bit/32bit)
Usage
- Select points, edges, or polygons on any selection mode.
- Activate "QWrinkle"
- Dragging horizontally changes the Width amount.
Dragging vertically changes the Shift amount. - Press Space-bar to accept.

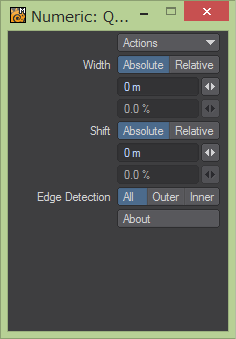

Interface (the numeric panel)
- "Width"
- The width of wrinkle can be set.
- "Shift"
- The depth of wrinkle can be set.

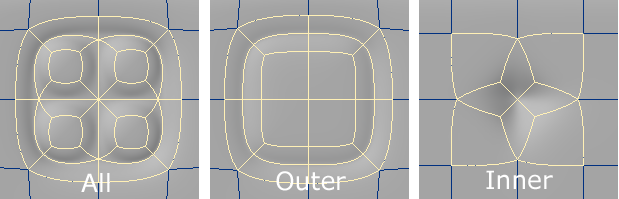

- "Edge Detection"
- You can select a edge detection type when you select polygons.
Registration
QWrinkle can be ordered now at a license fee of US$39 per LightWave Lock ID.
Payments are processed through PayPal.
Order Page
Contributor
Mike Green(www.mikegreen.name) has contributed many valuable suggestions and corrections.
Changelog
- v1.3 (Apr. 29, 2019)
- - Fixed a possible crash.
- v1.2 (Jan. 01, 2018)
- - Updated for LightWave2018.0.
- v1.1Beta1 (Feb. 17, 2017)
- - Added "Terminal Triangulation" that triangulates terminal polygons.
- v1.0 (Nov. 20, 2016)
- - The First Version
