The Bevel++ software is a Modeler plug-in. It is a beveling tool with some extended functions.
Quick Overview Video (Courtesy of Mike Green)

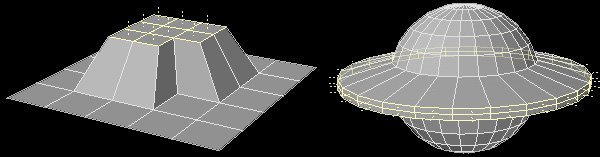

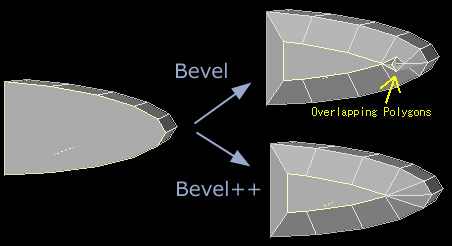

- Anti-Overlapping allows you to avoid the problem of overlapping polygons when beveling polygons with sharp edges.
- Group Mode treats the selected polygons as a group.
Note: Unfortunately, Anti-Overlapping and Group Mode can not operate simultaneously.

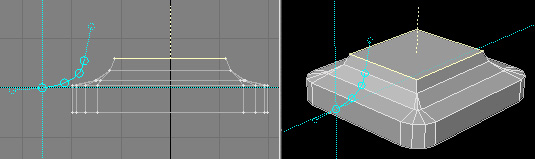

- Interactive Guide allows you to design a profile interactively to generate several bevel operations freely in a single step.
- Preset Shelf is available to save and load guides instantly.
LightWave 2018, 2019, 2020 (Windows 64bit)
LightWave 9.6, 10.1, 11.6, or 2015.3 (Windows 64bit/32bit)
(Known issue on LW9.6/10.1: In case of deactivating Bevel++ with doing nothing, a temp morph map of Bevel++ remains.)
Operation of Bevel++ is the same as that of the standard Bevel.
- Select polygons.
- Drag your pointer after activating the "Bevel++" plug-in. When "Draw Guide" is activated, please refer to the following.
Mouse Operation on Draw Guide
- Select Spline or Line at "Draw Guide"
- LMB click anywhere on viewport. This position will be a origin of guide line.
- - LMB drag the circular handles.
- CTRL+RMB click to add a circular handle inside.
- SHIFT+RMB click to add a circular handle outside.
- LMB double click a circular handle to delete the handle.
- RMB click to accept and bigin again.
Learn more about operations for multiple selections.

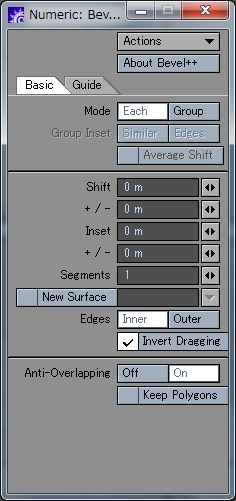

Interface (the numeric panel)
- Each : Beveling is applied to each selected polygon individually.
Group: Beveling is applied to the selected polygons as a group.
- "Group Inset" (Only "Mode -> Group")
- Similar: Inset is applied as keeping the appearance similar.
Edges : This method is same as that of an usual inset.
- "Average Shift" (Only "Mode -> Group")
- Selected polygons are shifted along the average of the polygon's normals.
- "Shift(+/-)", "Inset(+/-)", "New Surface" and "Edges"
- These functions are equal to the standard "Bevel" command.
- The number of bevel operations in a single step.
- "Invert Dragging"
- Dragging vertically allows you to interactively change the Shift amount.
Dragging horizontally allows you to interactively change the Inset amount.
- "Anti-Overlapping" (Only "Mode -> Each")
- The function to avoid the problem of overlapping polygons will be activated.
- "Keep Polygons"
- When beveling polygons, one-point polygons will be kept.

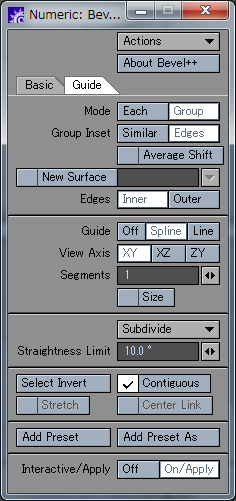

- "Draw Guide"
- The function to design a profile interactively will be activated.
You can select spline or line.
- "View Axis"
- The editing axes of Guide.
- The simple function that resize a guide.
- The function increases the detail of guide profile.
- "Straightness Limit"
- When subdividing a guide, if segment's straightness exceeds the limit, it is non-line.
- "Select Invert", "Contiguous", "Stretch" and "Center Link"
- Refer to operations for multiple selections
- "Add Preset" and "Add Preset As"
- The function saves a profile instantly.
- The profile is interactively applied to geometry.
Please select Off if the object is too complicated to operate interactively.
- "About Bevel++"
- Version information and LicenseID.
The demo version is available for evaluation purposes without charge.
The demo limits objects to 50 polygons and disables Preset function.
- Here it is as a zip file:
- bevelpp46demo.zip (v4.6demo/396KB)
- Copy "BevelPP64.p" or "BevelPP32.p" to your plug-in directory.
- Start up Modeler, choose "Utilities->Add Plugins", and select "BevelPP64.p" or "BevelPP32.p".
For information on adding plug-ins, refer to your LightWave 3D documentation.
- Select Additional tab, and it will appear as "Bevel++".
Bevel++ can be ordered now at a license fee of US$42 per dongle(or LightWave Lock ID).
Payments are processed through PayPal.
This version is a free upgrade for registered users. Please contact me.
Bugs & Limitations
- A calculation error causes overlapping polygons rarely.
- Group Mode

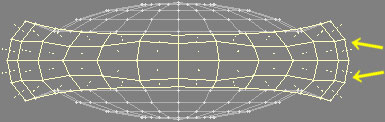

- In the case of an oval sphere, some waves are caused at "Method-Edges".
