Stretch_Point 1.1

Overview

The Stretch_Point software is a simple Modeler plug-in. It moves a selected point along the line passing through the point and an another selected point.

Page Top

Requirements

LightWave3D 9.6 or higher(Windows 32bit/64bit)

Page Top

Usage

  1. Select one or more pairs of points.
  2. Activating the "Stretch_Point" plug-in will show some handles.
  3. Drag the circular handle with your left mouse button, the point will move along the linear handle.
    Holding the CTRL key while dragging will move all the circular handles.
    You can click the end of the linear handle to invert the circular handle.
  4. Click your right mouse button to accept the current stretch and begin a new stretch operation.

Learn more about basic usage

Page Top

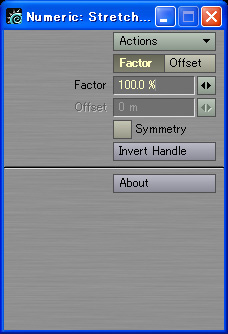

Interface (the numeric panel)

"Factor", "Offset"
The value of factor or offset can be set.
"Symmetry"
The end of linear handle also moves simultaneously.
"Invert Handle"
This button inverts the circular handle of the linear handle.
"About"
The version information.

Page Top

Installation

  1. Copy the "stretchpoint.p" file to your plug-in directory. (e.g., C:\LightWave_9_64\Plugins\model)
  2. Start up Modeler, choose "Utilities > Plugins > Add Plugins", and select "stretchpoint.p".
    For information on adding plug-ins, refer to your LightWave 3D documentation.
  3. Edit "Edit > Edit Menu Layout > Command > Additional", and it will appear as "Stretch_Point".

Page Top

Download

Here it is as a zip file:
stretchpnt11.zip (v1.1/ 97.8KB)

Page Top

Changelog

v1.1 (Nov. 11, 2009)
- Compiled for 64bit.
v1.0 (Aug 28, 2002)
- The First Edition
